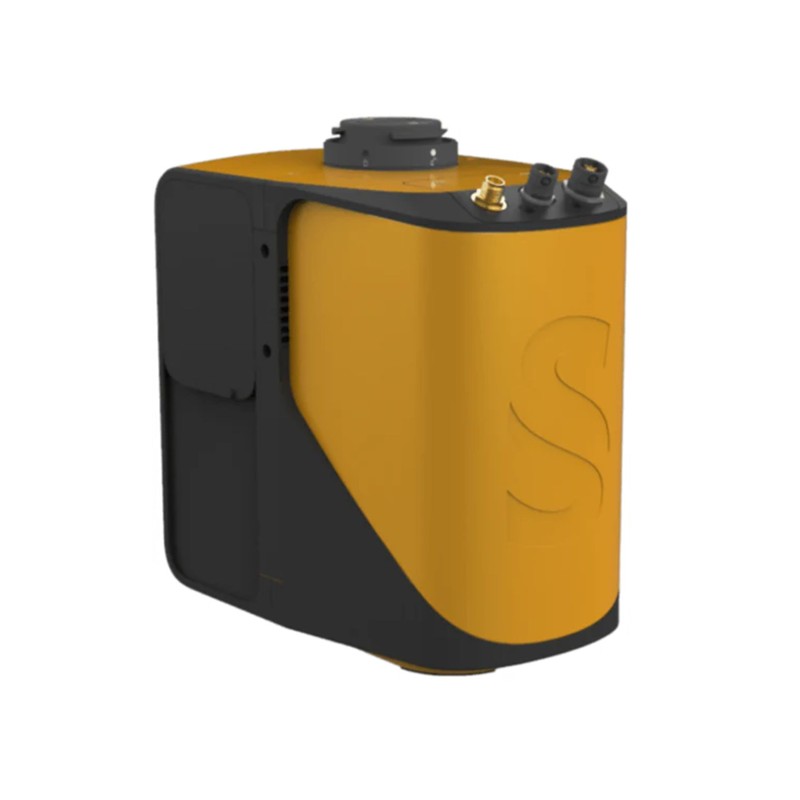

YellowScan Mapper+ (version 3) & Single Camera Module 20MP

YellowScan Mapper+ (version 3) & Single Camera Module 20MP

Overview
Jump into the LiDAR revolution with YellowScan® Mapper (Version 3) & Single Camera Module 20MP.
Start your LiDAR journey with the easy-to-use Mapper system.
Its low weight, mid-range capability, top-end point density and advanced accuracy and precision, makes this LiDAR system the best value for the money.
Then add the Sony APS-C size Exmor™ CMOS image sensor with a BIONZ X™ processor to produce high-precision 20 MP images.

Key Features
High Density Point Cloud
Advanced Precision
Compact
Technology Inside: Applanix / Livox
Collect LiDAR and RGB data in a single flight

20 MP Single Camera Module
Sony APS-C sensor (23.6 x 15.7mm)
16 mm Focal Length
Rolling Shutter
Field of View: 71.9°
331 g
Powered by the system
Synced to your LiDAR
Easy to use
Sony E 16mm F2.8 Lens

Specifications
Laser scanner: Livox Horizon
GNSS inertial solution: Applanix APX-15 UAV
Precision: 4 cm
Accuracy: 4 cm
Typ. flight speed: 10 m/s
Typ. flying height: 60 m
Max. rec. flying height: 70 m
Point density: 230 pts/sqm @ 60 m AGL 10 m/s
Laser range: Up to 130 m
Laser wavelength: 905 nm
Scanner field-of-view: 81.7 ° x 25.1°
Max. data generated: 480 000 points/sec
Echoes per shot: Up to 2
Shots per second: Up to 240 000
Scanning frequency: Up to 10 Hz
RGB camera: Optional
Weight: 1.3 kg (2.9 lbs) batt. excl.
Size: L 143 x W 98 x H 149 mm
Autonomy: 1 hour typ.
Power consumption: 19 W
Operating temperature: -10 to +40 °C
20 MP Camera Module
Weight (g): 331 (.7lbs)
Shutter Type: Rolling
Sensor Size: APS-C
Sensor Width (mm): 23.2
Sensor Height (mm): 15.4
Image Width (px): 5456
Image Height (px): 3632
Focal Length (mm): 16
Pixel Size (µm): 4.25 × 4.25
GSD at... (cm/px)
AGL 50 m: 1.33
AGL 80 m: 2.13
AGL 100 m: 2.66
AGL 120 m: 3.19
