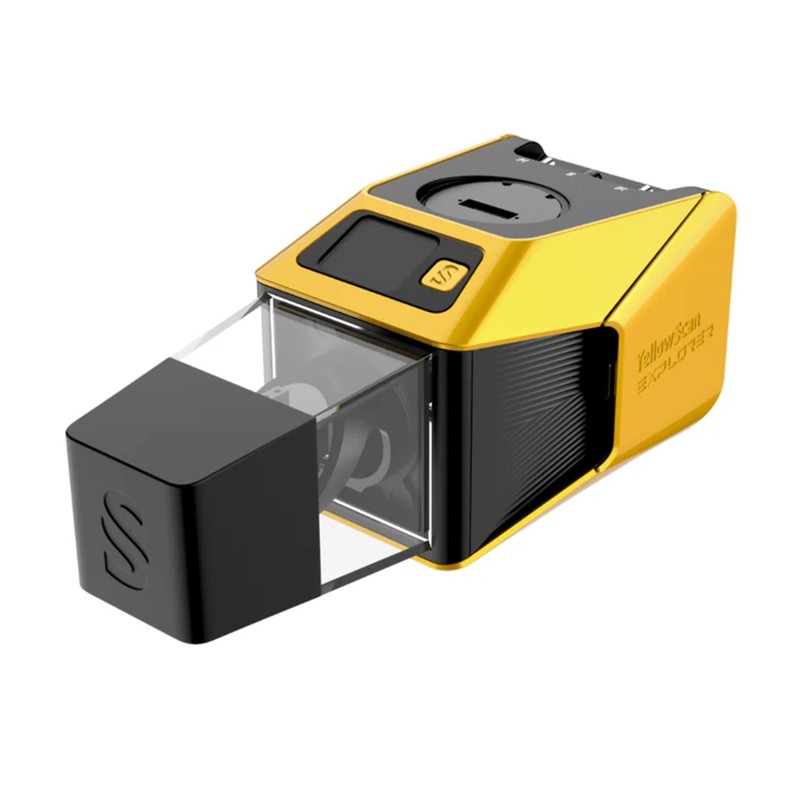

YellowScan Explorer (version 2) Integrated System

YellowScan Explorer (version 2) Integrated System

Overview
The YellowScan Explorer is equipped with a lightweight and
powerful long-range laser
scanner that can be mounted on various UAVs.
The Explorer is the first LiDAR that can be mounted on a light manned aircraft, helicopter or car, and still be switched to a UAV platform like the DJI M350.
This versality allows users to tackle a wide range of projects with the proven ease-of-use of YellowScan’s UAV LiDAR solutions.

Key Features
360° Surveying & Mapping
Powerful & Lightweight
Long Operational Range
Compatible with Single or Dual RGB Camera Module
Technology Inside: SBG Systems Quanta Micro / YellowScan Explorer Laser Scanner

Specifications
Laser scanner: YellowScan development
GNSS inertial solution: SBG Quanta Micro
Precision: 2 cm
Accuracy: 2 cm
Typ. flight speed: 10 m/s
Typ. flying height: 120 m
Max. rec. flying height: 200 m
Point density: 50 pts/sqm @ 100m AGL 10 m/s
Laser range: Up to 300 m
Scanner field-of-view: 360°
Max. data generated: 2 500 000 points/sec
Echoes per shot: Up to 5
Shots per second: Up to 500 000
Scanning frequency: Up to 165 Hz (selectable)
RGB camera: Built-in 2MP global shutter
Weight: 1.8 kg (4.0 lbs) batt. excl.
Size: L 270 x W 118 x H 135 mm
Autonomy: 1 hour typ.
Power consumption: 55 W
Laser wavelength: 1556 nm
Operating temperature: -10 to +40 °C
