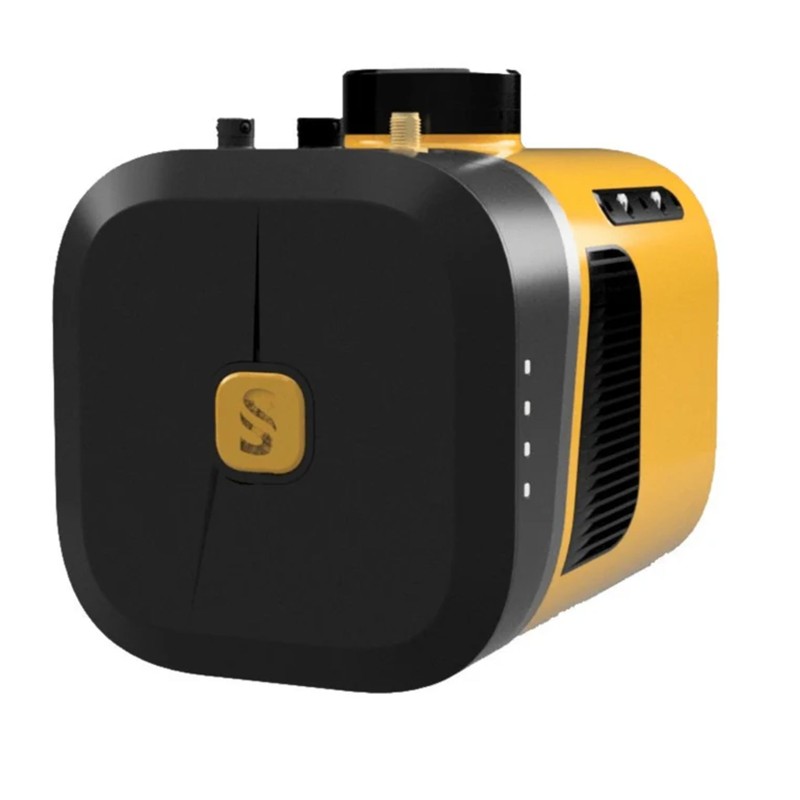

YellowScan Mapper+ (version 3) Integrated System
To continue browsing our site, you must accept our Terms and Conditions on the use of cookies
  • New

    YellowScan Mapper+ (version 3) Integrated System

    Sob Encomenda
    8554888743603
    Quantity :

    YellowScan Mapper+ (version 3) Integrated System

    Overview
    The YellowScan Mapper+ integrates Livox AVIA laser scanner together with high performance GNSS-aided inertial navigation system into a lightweight, long range, standalone and easy-to-use lidar system.
    The Mapper+ provides proven capabilities and stable results over a wide range of applications.
    Advanced performance fitted into a compact survey solution.

    Key Features
    High Point Density
    Lightweight
    Long Range
    100 m typ. Flying Height
    Technology Inside: Applanix / Livox

    Specifications
    Laser scanner: Livox AVIA
    GNSS inertial solution: Applanix APX-15 UAV
    Precision: 3.5 cm
    Accuracy: 4 cm
    Typ. flight speed: 10 m/s
    Typ. flying height: 80 m
    Max. rec. flying height: 100 m
    Point density: 170 pts/sqm @ 100m AGL 10 m/s
    Laser range: Up to 230 m
    Laser wavelength: 905 nm
    Scanner field-of-view: 70.4° x 4.5°
    Max. data generated: 720 000 points/sec
    Echoes per shot: Up to 3
    Shots per second: Up to 240 000
    Scanning frequency: Up to 10 Hz
    Weight: 1.1 kg (2.4 lbs) batt. excl.
    Size: L 150 x W 104 x H 132 mm
    Autonomy: 1 hour typ.
    Power consumption: 35 W
    Operating temperature: -10 to +40 °C
