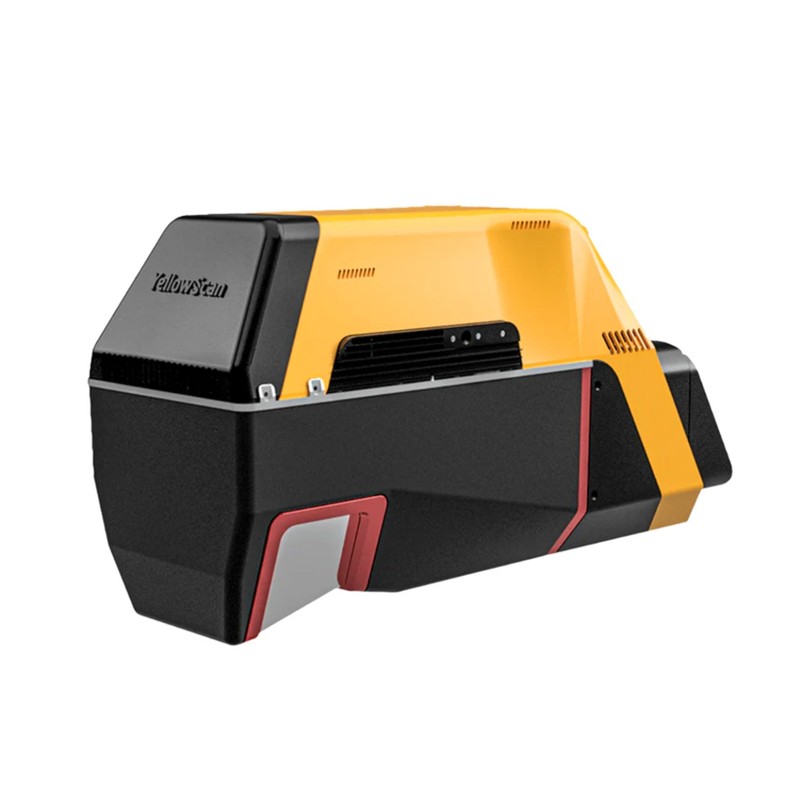

YellowScan Voyager 30 Integrated System

YellowScan Voyager 30 Integrated System

Overview
The Voyager is YellowScan"s highest range LiDAR solution, with a range of up to 440m.
The Voyager’s 100° laser scanner with its extremely fast data acquisition rate of up to 2400 kHz, makes this solution the best option for projects requiring the highest point density.
Its detection and processing of up to 32 target echoes per laser pulse will provide results of several million measurements per second.
The YellowScan Voyager is a powerful solution for both manned and unmanned aircrafts, with the ability to efficiently cover complex and vertical targets.

Key Features
Up to 2 Million Shots/Second
Up to 32 Echoes
Multi-Platform
Technology Inside: Applanix AP+ 30 AIR / RIEGL VUX-120

Specifications
Laser scanner: RIEGL VUX-120
Max. data generated: 12 000 000 points/sec
GNSS inertial solution: Applanix AP+ 30 AIR
Echoes per shot: Up to 32
Precision: 0.5 cm
Shots per second: Up to 2 000 000
Accuracy: 1 cm
Scanning frequency: Up to 400 Hz (selectable)
Typ. flight speed: 30 m/s
RGB camera: Optional
Typ. flying height: 300 m
Weight: 3.5 kg (7.7 lbs) batt. excl.
Max. rec. flying height: 440 m
Size: L 369 x W 117 x H 183 mm
Point density: 24 pts / sqm @ 300 m AGL 30 m/s
Autonomy: 1 hour typ.
Laser range: Up to 1250 m
Power consumption: 98 W
Laser wavelength: 1550 nm
Operating temperature: -10 to +40 °C
Scanner field-of-view: 100° x 20°
