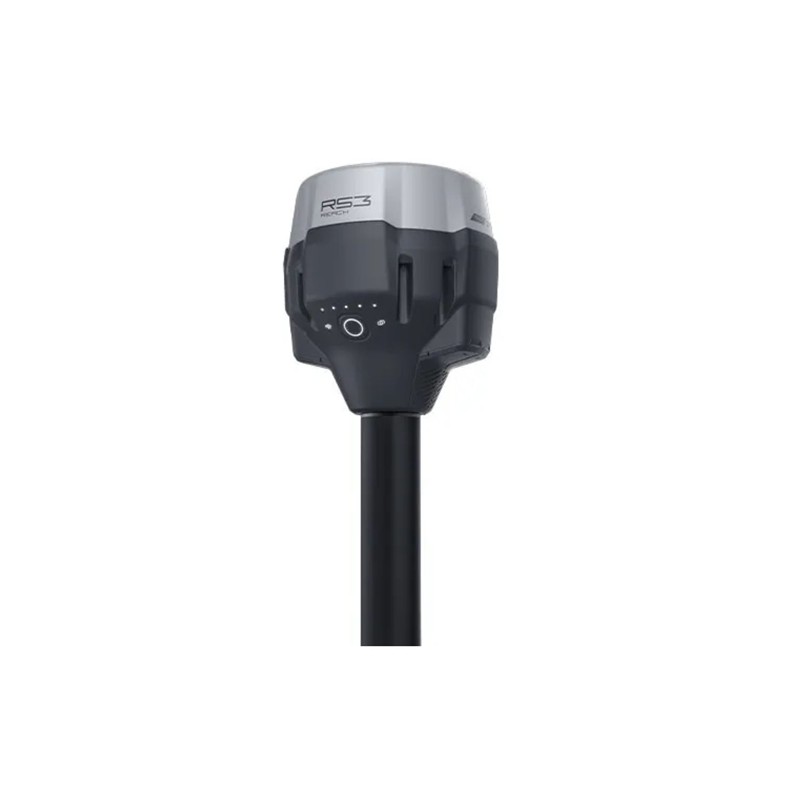

Estação Emlid RTK GNSS Reach RS3 - Combo
Overview
The IMU-based tilt compensation on the Reach RS3 allows you to take measurements at up to 60 degrees of tilt while maintaining 20 mm accuracy.
The Reach RS3 continuously measures and corrects for tilt in real time to keep you on target.
Unaffected by magnetic fields, the RS3 offers robust tilt compensation even when working near metal structures.
The Reach RS3 obtains a centimeter-accurate solution in about 5 seconds.
It maintains robust performance even when the view of the sky is partially obstructed or the receiver itself is tilted.
The Reach RS3 comes equipped with an integrated industrial-grade battery that can support up to 22 hours of logging or 18 hours of RTK tilt work.
For uninterrupted operation over several days, simply connect a power bank, as you would with your cell phone.
Specifications
Dimensions: 126x126x142 mm
Weight: 950g
Protection: IP67
Autonomy: 18 hours as an RTK rover with tilt, 22 hours of recording
Battery: Li-Ion 5200 mAh, 7.2 V 37.44 Wh
Charger: USB Type-C 5 V, 2 A
Tracked signal: GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1B/C, E5b
Channels: 184
Update rate: up to 10 Hz GNSS
IMU: 6DOF
Package contents:
Reach RS3 x 1
Survey Pole with a smartphone mount x1
Reach RS3/RS2+ extension pole x1
Seco tribrach with optical plummet x1
Seco rotating tribrach adapter x1
Seco aluminum tripod x1
