DJI DL PZ 17-28 mm T3.0 ASPH Lens

DJI DL PZ 17-28 mm T3.0 ASPH Lens

Overview
· Calibration-Free Focusing Experience
DJI’s first cinema zoom lens DL PZ 17-28 mm T3.0 ASPH covers focal lengths from ultra-wide-angle 17 mm to wide-angle 28 mm to meet the need of professional shooting.
Once mounted, the lens is ready to deliver accurate focusing and zoom without calibration.

· High Resolution From Center to Edge
Ultra-high resolution from center to edge that meets the requirement of 8K sensors for image quality.
Delivers sharp imagery and outstanding optical performance.

· 0.19m Minimum Object Distance
A minimum object distance of 0.19 m can meet the needs of most close-up shots at ultra wide angles.

· 520g Aluminum Magnesium Alloy Body
The lens design using aluminum magnesium alloy effectively reduces weight to a ultra-light 520 g, while ensuring stiffness and strength.

· Built-in Servo Zoom Motor
With a servo zoom motor built in, the lens can zoom without having to mount an external focus motor.
The non-detachable motor is light and portable.

· Zoom without Re-balancing
The lens tube moves within 5 mm while zooming.

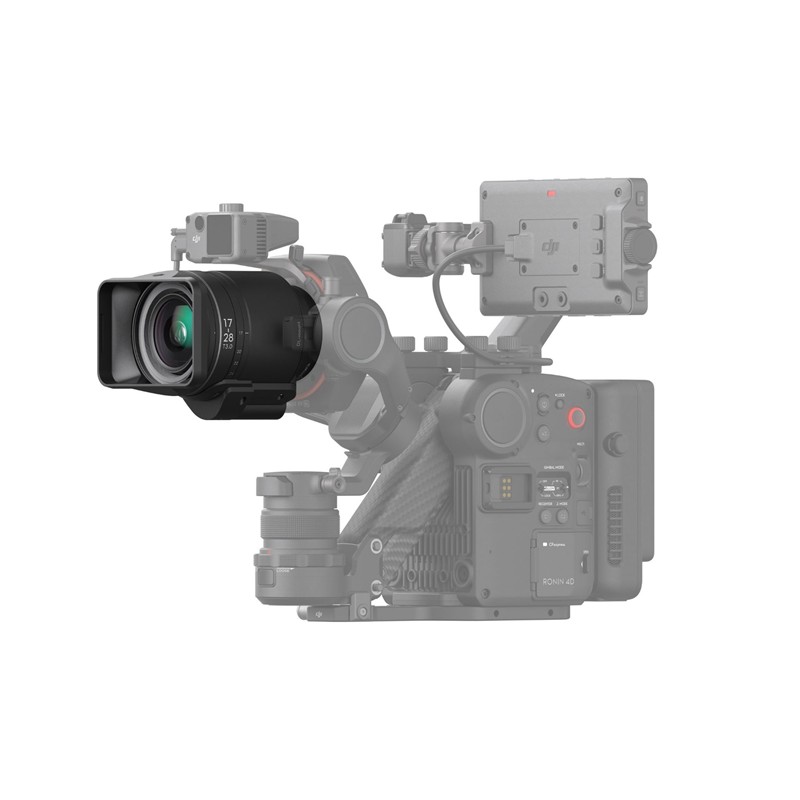

When using with Ronin 4D, re-balancing is not required after zooming.

In The Box
1x Lens Front Cap
1x Lens Hood
1x Lens
1x Lens Rear Cap

Specifications
Imager Size: Full frame (36×24 mm)
Focal Length: 17-28 mm
MOD (From Object to Image Plane):
17 mm: 0.19 m
28 mm: 0.26 m
Aperture Range: T3.0 to T22
Filter Diameter: F 67 mm
Lens Mount: DL mount
Weight (lens hood included): Approx. 520 g
Operating Temperature: -10° to 55° C (14° to 131° F)

Compatibility
Zenmuse X9-6K Gimbal Camera
Zenmuse X9-8K Gimbal Camera
