DJI Power Solar Panel Adapter Module (MPPT)

DJI Power Solar Panel Adapter Module (MPPT)

When a DJI Power series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can connect solar panels via the XT60 interface to the DJI Power series eco-charging adapter panel. It is recommended that DJI Power Series power stations be used in conjunction with DJI-certified Zignes solar panels. If using solar panels from other brands, it is necessary to use the MPPT module and a conversion from the solar panel port to the XT60 interface to enable solar charging for the DJI Power series.

* The necessary accessories are sold separately.

Tips
1. One MPPT module can be connected to a maximum of three solar panels.

2. To use solar panels not officially recommended by DJI and to avoid damage to the MPPT module and the power pack, make sure that the open circuit voltage of the solar panel is less than 30 V. The output power of each solar panel must not exceed 200 W, with the total output power of the solar panels connected to the entire MPPT module limited to 400 W.

3. When using solar panels with the MPPT module, install the included metal heat dissipation bracket.

4. When used with the DJI Power 500, the maximum power output of the solar panels connected to the entire adapter module must not exceed 300 W.

Specifications
Total output:
Single channel: 200 W maximum
Triple channels:
Maximum 400 W (with DJI Power 1000)
Maximum 300 W (with DJI Power 500)
Input voltage: 12-30 V, DC
Maximum input current:
Single channel: 10 A
Triple channels: 16 A
Operating temperature: -10° to 45° C (41° to 113° F)

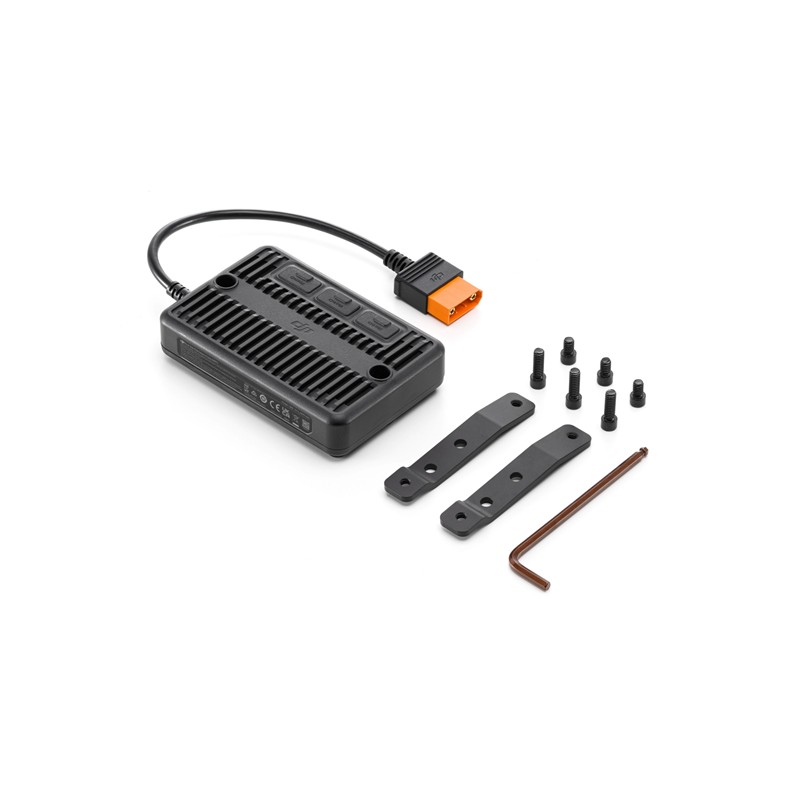

In the box
1x DJI Power Solar Panel Adapter Module (MPPT)
2x Metal heat dissipation bracket
1x Spherical hexagonal wrench
3x 10mm screw
3x 20mm screw

Compatibility
DJI Power 1000
DJI Power 500T
