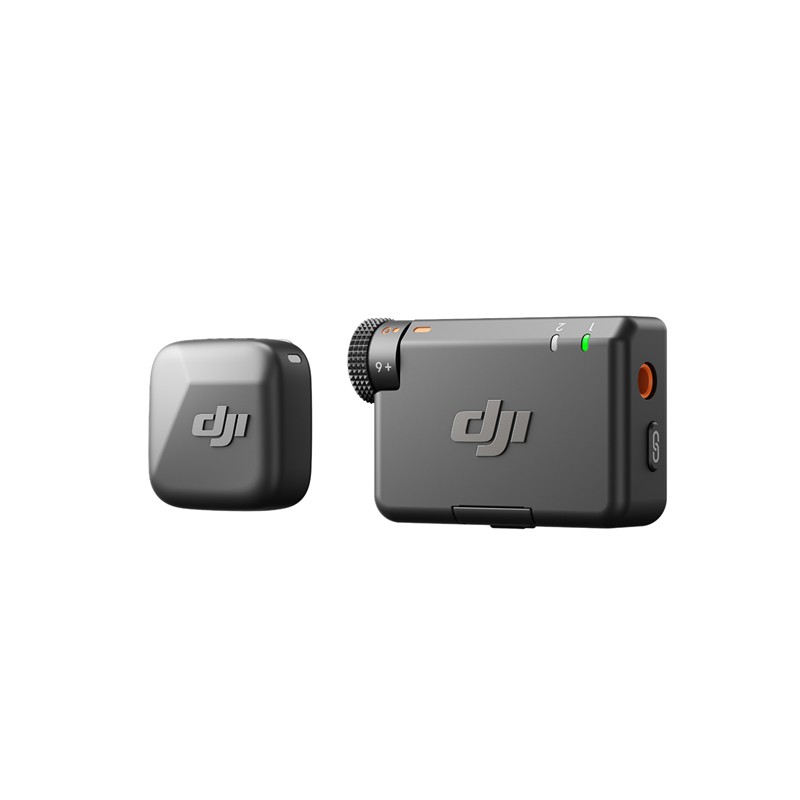

DJI Mic Mini (1 TX + 1 RX)

DJI Mic Mini (1 TX + 1 RX)

Overview
DJI Mic Mini, a wireless microphone that packs powerful performance into a super light structure.
It guarantees stable transmission of high-quality audio, with a long battery life and direct connection to products in the DJI OsmoAudio™ ecosystem.
Richly detailed sound recordings that elevate your content creation experience.
Just open the Charging Case and high-quality audio is at your fingertips.

Specifications
Dimensions: 26.55×26.06×15.96 mm (L×W×H)
Weight: Approx. 10 g (without magnetic clip)
Wireless mode : GFSK 2 Mbps
Equivalent isotropic radiated power (EIRP): <20 dBm
Wireless Mode operating frequency: 2.400 to 2.4835 GHz
Bluetooth protocol: Bluetooth 5.3
Bluetooth operating frequency: 2.400 to 2.4835 GHz
Bluetooth transmitter power (EIRP): <20 dBm
Battery type: Li-ion
Battery capacity: 114 mAh
Battery power: 0.44 Wh
Battery voltage: 3.87 V
Charging specifications: Max. 5 V
Charging temperature: 5° to 45 °C
Operating temperature: -10° to 45 °C
Charging time: Approx. 90 min.
Operating time “Approx. 11.5 hours*
*Measurements taken using the DJI Mic Mini (1 TX + 1 RX), with noise cancellation disabled, during short-distance audio recording in interference-free conditions, with the transmitter connected to the receiver and the receiver connected to a camera via the Camera Audio Cable (3.5 mm TRS).
Polar pattern: Omnidirectional
Frequency response: “High-pass disabled: 20 Hz to 20 kHz / High-pass enabled: 100 Hz to 20 kHz”
Max. sound pressure level (SPL): 120 dB SPL
Equivalent noise: 24 dBA
Max. transmission distance: “400 m*
*Measurements taken in an open, unobstructed and interference-free environment, for reference purposes only.

Technical features
Compact, super light, discreet
High quality audio with stable transmission
Around 48 hours of operation with the Charging Case
“DJI OsmoAudio™ Direct Connection for premium sound quality”
Active two-level noise cancellation
Automatic limiting to prevent audio cuts

In the Box
1x DJI Mic Mini Transmitter (Infinity Black)
1x DJI Mic Mini Receiver
1x DJI Mic Mini Camera Audio Cable (3.5mm TRS)
1x DJI Mic Mini Mobile Phone Adapter (Type-C)
1x DJI Mic Mini Windscreen (Black/Gray)
1x DJI Mic Mini Windscreen (Black)
1x DJI Mic Mini Clip Magnet
1x DJI Mic Mini Compact Carrying Pouch
1x DJI Mic Splitter Charging Cable
1x DJI Mic Mini Transmitter Charging Dock
