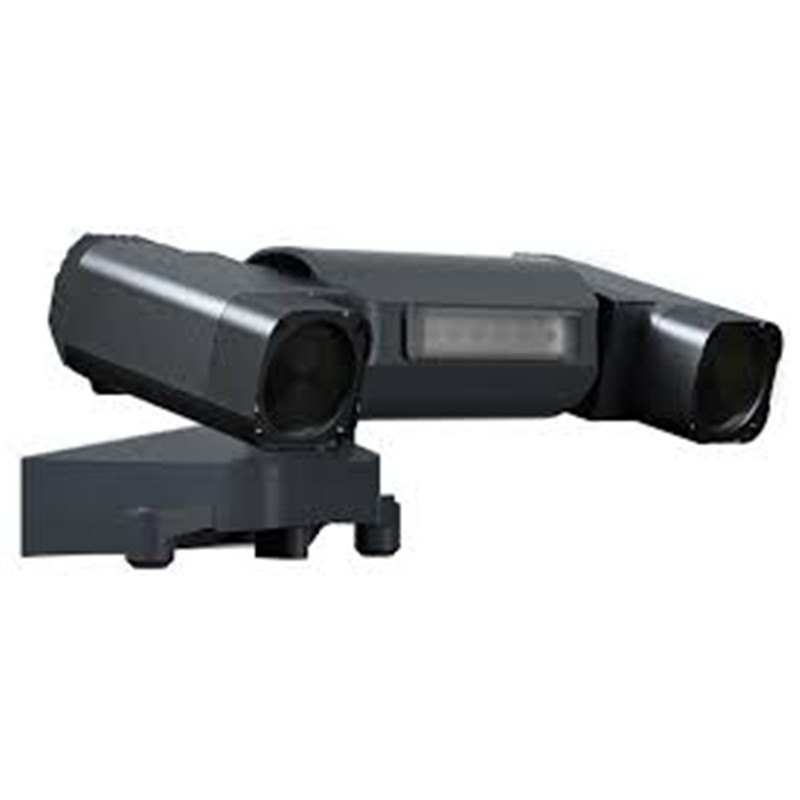

CZI GL10 Gimbal Searchlight

CZI GL10 Searchlight Gimbal

The GL10 Gimbal Searchlight is the industry"s first lightweight gimbal searchlight, designed specifically for the DJI Mavic 3 commercial drone, weighing less than 140g and with a power rating of 20W. The GL10 Gimbal Searchlight has an optical imaging lens structure with an emission angle of 13°.

Specifications
Weight: 130g ±4%
Dimension: 107x128x51.5 (L x W x H)
Total power: 30W
White LED power: 20W
Red and blue LED power: 2W
Supply voltage: 15V
Luminous flux: 1830 Im ±3%
Operating temperature: -20°C ~ +50°C

Attention!
The GL10 Gimbal Searchlight operates with a preset power limit of 30% before the drone takes off (the power can be manually adjusted to 50% or 100%). After take-off, the power can be increased to 100%.

During operation of the GL10 Gimbal Searchlight, avoid direct contact with the outer coating of the light, as this can cause burns due to the high temperature.

In the box
1x CZI GL10 Gimbal Searchlight

Compatibility
Mavic 3 Enterprise
Mavic 3 Thermal
