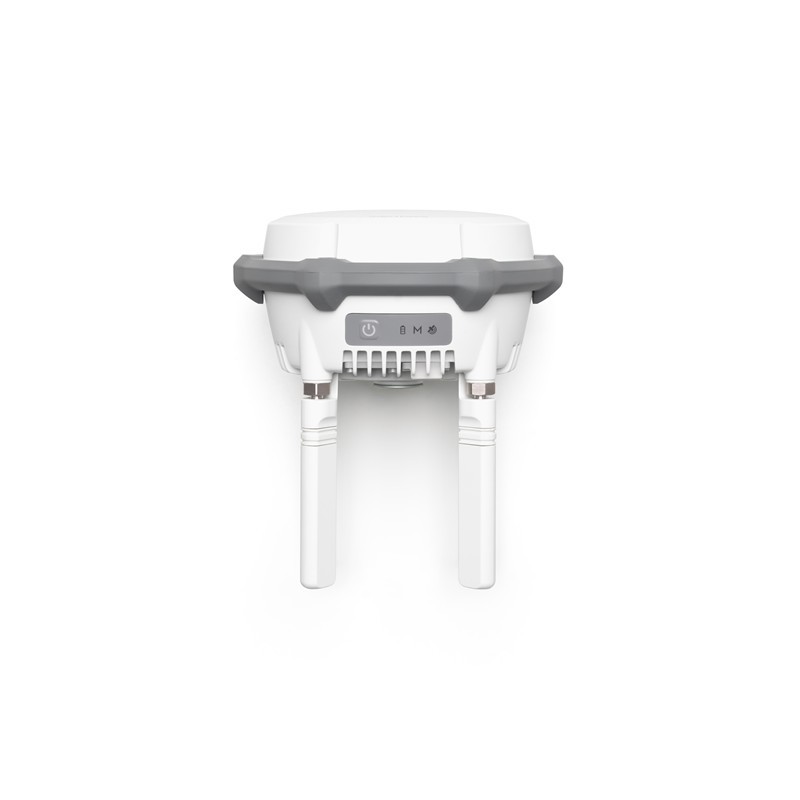

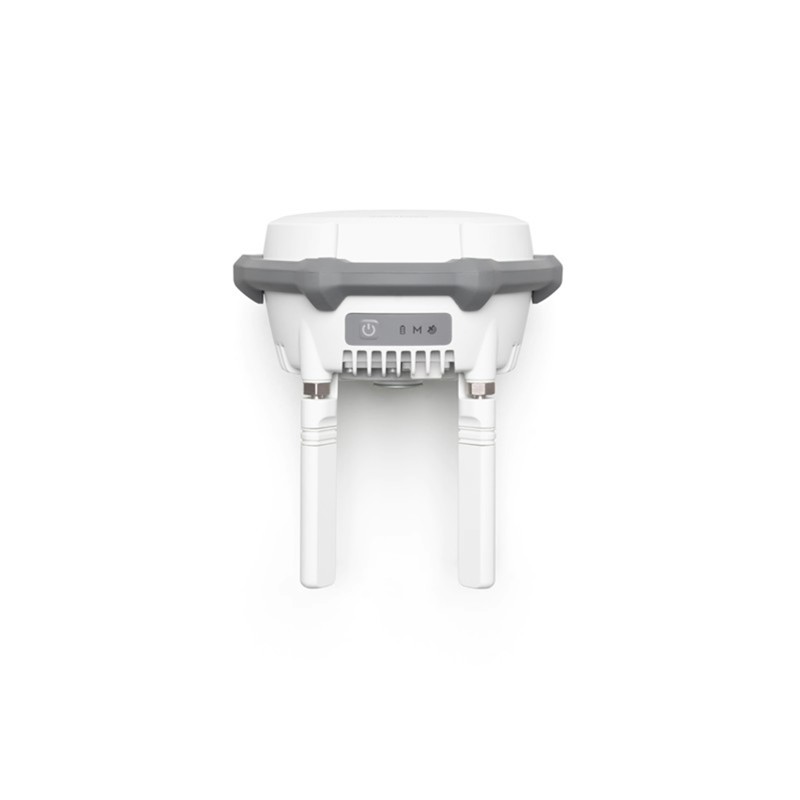

DJI D-RTK 3 Multifunctional Station

DJI D-RTK 3 Multifunctional Station

Overview
The new D-RTK 3 Multifunctional Station integrates high-performance antennas and receiver modules, capable of tracking and resolving data from major global satellite navigation systems.
It supports multiple data transmission links and can analyze device position and orientation through its built-in high-performance inertial measurement unit.
With these outstanding features, it can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously, or extend the operational range of drones in relay station mode.
Additionally, the new rover station mode, combined with the DJI ENTERPRISE app and DJI Terra, offers a one-stop solution for high-precision aerial surveying applications.

Tips
1. Measurement accuracy depends on various factors. This value is obtained under normal conditions with an unobstructed view, good satellite distribution, low ionospheric activity, and no electromagnetic interference or multipath effects.
2. Intense vibrations and rapid rotations can affect the accuracy of the inertial measurement unit.
3. The relay station should be placed in a high, unobstructed location to ensure clear communication between the remote controller and the aircraft.
4. Measured in an unobstructed outdoor environment free of interference.
The above data shows the farthest communication range for one-way, non-return flights under each standard.
Always pay attention to RTH reminders in the app during your flight.
5. Please make sure all rubber plug interfaces on the body are properly installed.

Specifications
GNSS Frequency
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
Rover Station Mode Accuracy
Static Measurement
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
Tilt Measurement
Angle Range: 0°to 60°
Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)
FCC:
15 km between the aircraft and the relay station
1 km between the relay station and the remote controller
SRRC:
12 km between the aircraft and the relay station
1 km between the relay station and the remote controller
CE:
8 km between the aircraft and the relay station
300 m between the relay station and the remote controller
Protection Rating: IP67 (station only)
Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
Weight: 1.26 kg

In The Box
1x D-RTK 3 Multifunctional Station
4x Spare OcuSync Directional Antennas
1x USB-A to USB-C Cable
