DJI Fly Cart 30 Tethering System

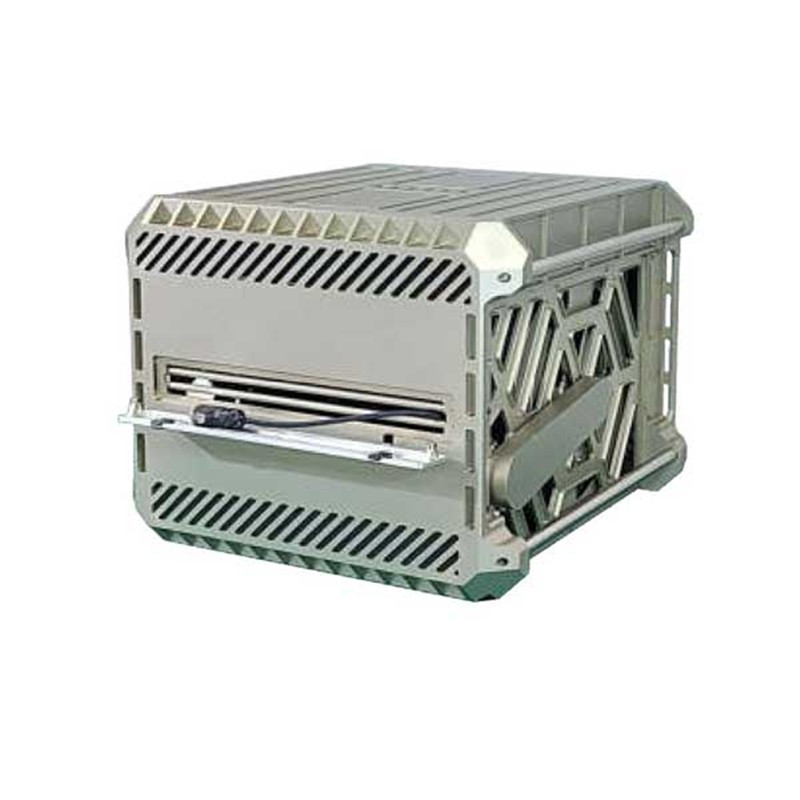

Flycart30 Air module

Input voltage: 580~810Vdc wide range input
Output voltage: 59 ± 0.5Vdc, constant voltage output
Output power: 18000W (rated long-term output), 22000W (peak value = 10s)

Protection function:

Input overvoltage and undervoltage protection, Output overvoltage, overcurrent, short circuit, and over temperature protection
Isolation voltage: 3000V (Vin-Vout), 1min, leakage current = 5mA, no breakdown, flashover, or corona phenomenon
Installation method: Replace a drone battery and install it directly by plugging and unplugging it.
Heat dissipation method: Built in fan active heat dissipation, reserved air duct forced air cooling
Interface Input: Input LP20 aviation plug, output XT90;
Protection level: IP54
Size: 468×308×142 ± 0.5mm, excluding mounting lugs
Weight: 10.8 ± 0.2kg, excluding external connectors



TPS110M-Flycart30 Cable

Material:
Alloy lightweight high-temperature resistant aviation wire, composite fluoroplastic
insulation layer, high modulus tensile aviation grade fiber woven layer.

Working current: 25-30A;
DC resistance: 1.6 ± 0.1 O, 100m@20 °C loop,
Tensile strength: = 300kg, resistant to repeated retraction and release times = 1000 times;
Insulation strength: = 3500Vdc, no breakdown for 1 minute;
Cable length: 110m.
Weight: 44g±1g/meter; outer diameter: 6.3mm.
Support total takeoff weight: 60-90kg



TPS110M-Flycart30 Ground module

Input voltage: 380Vac wide range input, three-phase five wire system 380Vac @50/60Hz
Output voltage: 600~800Vdc adjustable, factory default 800Vdc
Output power: 22000W (rated long-term output), 25000W (peak value = 30s)
Storage cable length: 110m;
Retraction speed: 0-3m/s, adjustable
Reel in/out tension: 0-20N, adjustable
Interface: Input aviation socket, communication Type-C port, cable output LP20 aviation connector
Buttons and switches: High-voltage on/off button, cable forced retraction button, AC input switch,
backup power switch
Size: 600 ×570 × 460 ± 0.5mm, excluding foot pads
Weight: 54.0 ± 0.5kg, not including tethered cable weight
