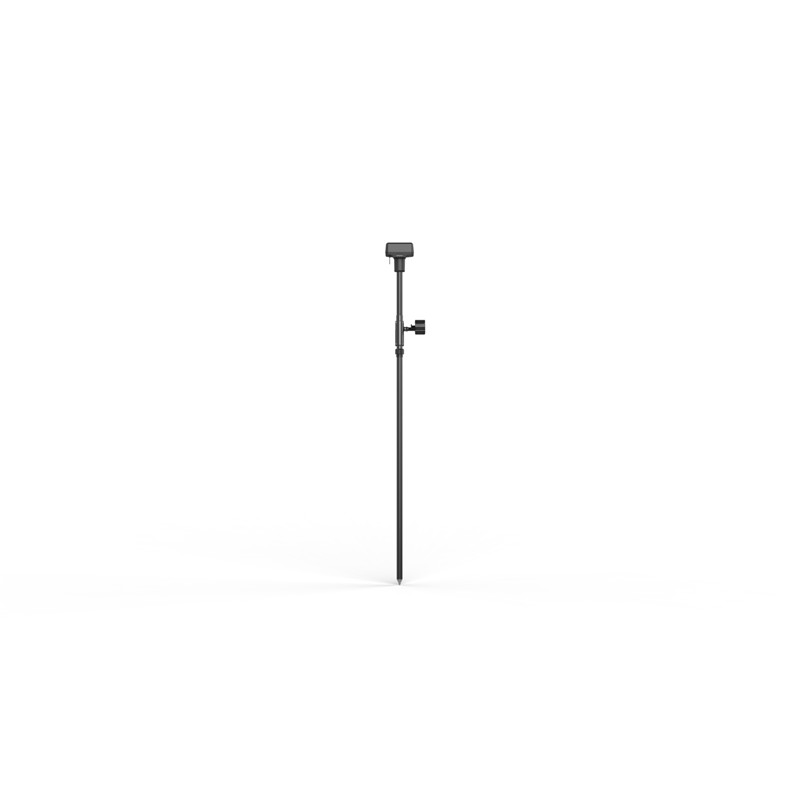

DJI D-RTK 2 High Precision GNSS Mobile Station

DJI D-RTK 2 High Precision GNSS Mobile Station

Overview
Supports four global satellite navigation systems — BeiDou, GPS, Galileo, GLONASS, and 11-frequency satellite reception, providing real-time differential corrections to facilitate the aircraft in centimeter-level precision positioning.
It also supports coordinated operations involving multiple drones and an IP65 protection rating.

Highlights
Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B
Connect multiple drones to conduct coordinated operations
IP65 Ingress Protection

In The Box
1x D-RTK 2 Body
1x Extension Rod
1x Charging Hub
2x Intelligent Battery (WB37)
1x Battery Cover
1x USB-C Cable
1x USB-C OTG Cable
1x Hex Key

Specifications
Simultaneously receives:
GPS: L1 C/A, L2, L5
BeiDou: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning Accuracy:
Single Point Horizontal: 1.5 m (RMS)
Vertical: 3.0 m (RMS)
Horizontal (RTK FIX): 1 cm+1 ppm (RMS)
Vertical (RTK FIX): 2 cm + 1 ppm (RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less.
For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
IP65 Rating
Operating Temperature: -20° to 55° C (4° to 131° F )

Compatibility
Matrice 350 RTK
DJI Inspire 3
DJI Mavic 3E
DJI Mavic 3T
Matrice 30 Series
Phantom 4 RTK
Matrice 300 RTK

* Tripod not included
