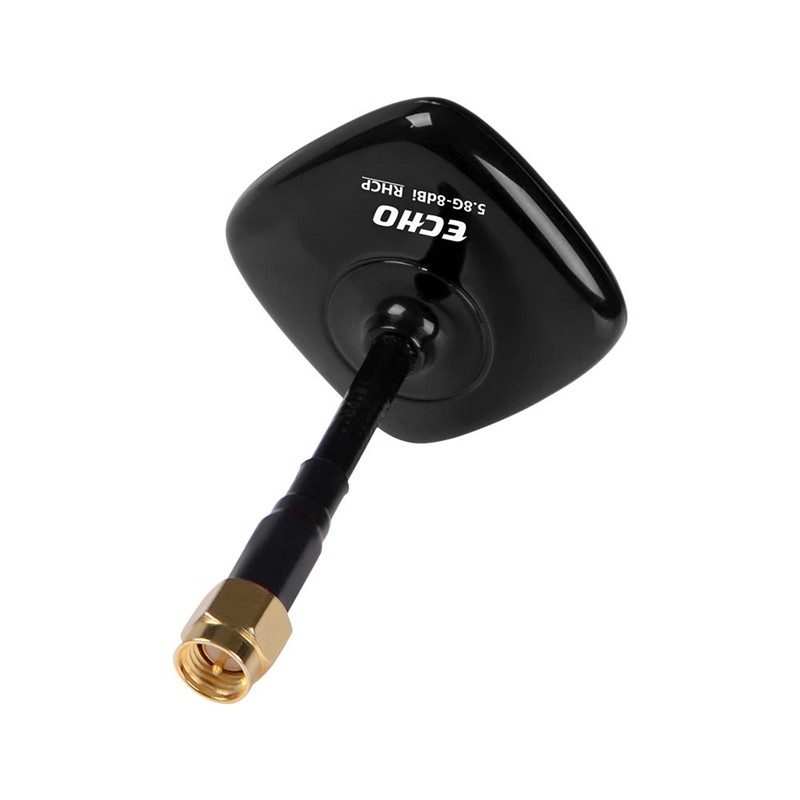

Foxeer Echo 5.8G Patch Antenna RHCP SMA Coaxial
The Foxeer Echo antenna, designed for FPV glasses and 5.8Ghz receivers, is the perfect combination for Lollipop antennas. Available in RHCP and LHCP versions.
Features:
Material PC + super resistant ABS
Weight 8 grams
Length: 21.7mm | Diameter: 40.3mm
Frequency: 5.8Ghz
Radiation Direction Angle: 84.7 degree
Bandwidth: 500Mhz (5.5 - 6Ghz)
Central frequency: 5600 - 5950Mhz
Gain: 8Dbi
Radiation efficiency: 98%
RHCP polarization
Connector: SMA
